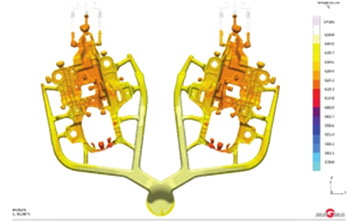

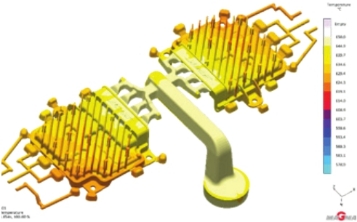

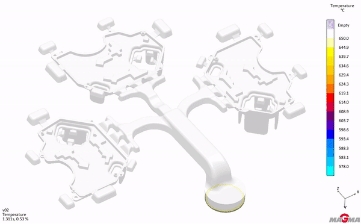

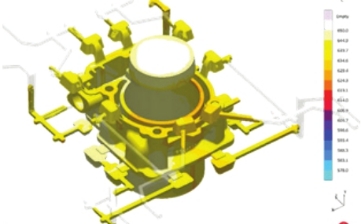

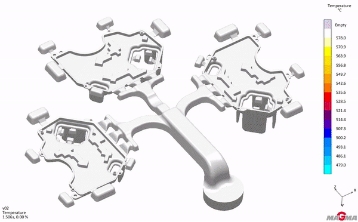

Magmasoft’s latest High Pressure Die Cast module is an integral part of our full service engineering support. This simulation software is used to predict metal flow, tooling and part thermal conditions, gas entrapment and venting-vacuum possibilities, giving the customer an advanced picture of the die cast process before the tool is production.
What is flow simulation? It is an engineering technique used during aluminum die casting die design that enables to maximize casting quality and process stability. The software runs and assesses various casting, runner and gate design and process parameter combinations. This enables casting designers and manufacturing experts to evaluate possible design options comprehensively and take secured decisions in an early development phase.
Simulation optimizes the tool design to meet the final product requirements. It helps engineers to predict and correct potential casting problems proactively during the tool design stage.
Balanced runner system
Optimized gating system
Increased productivity
Reduced physical try and error on finished die
Saving cost through scrap reduction
Upfront quality control
Saving time due to the process cycle optimization
